RP70L
RP70L

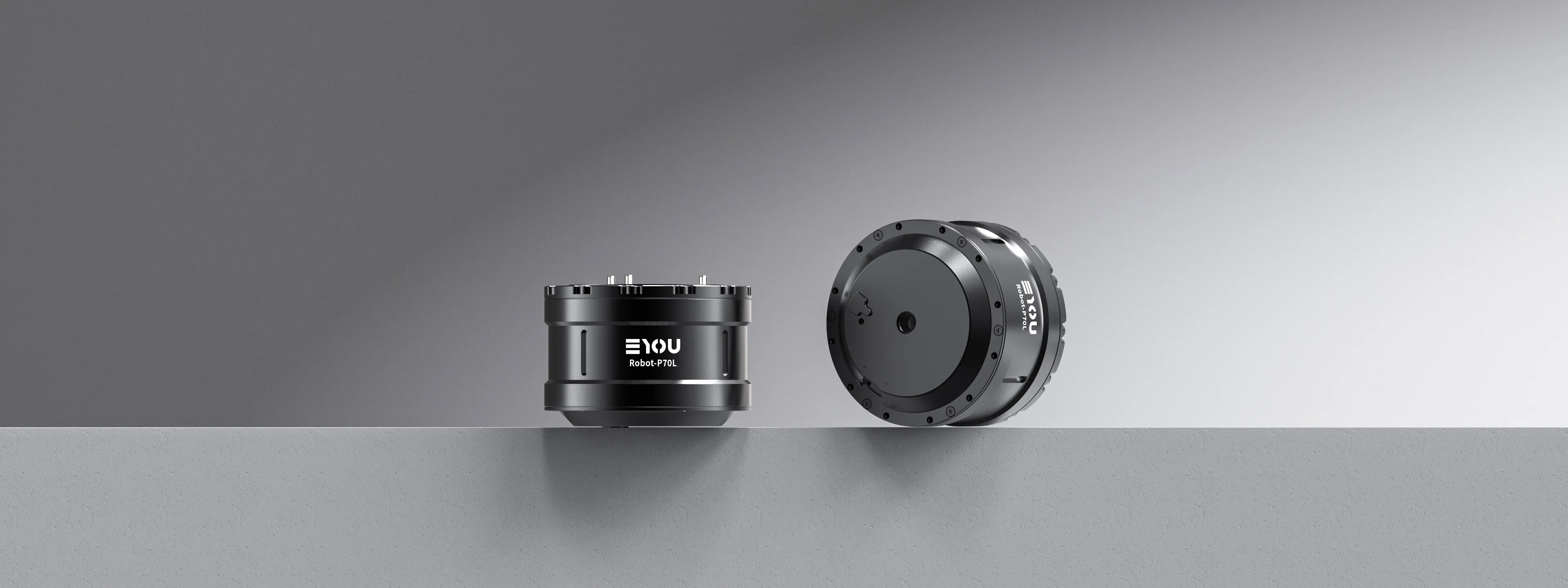

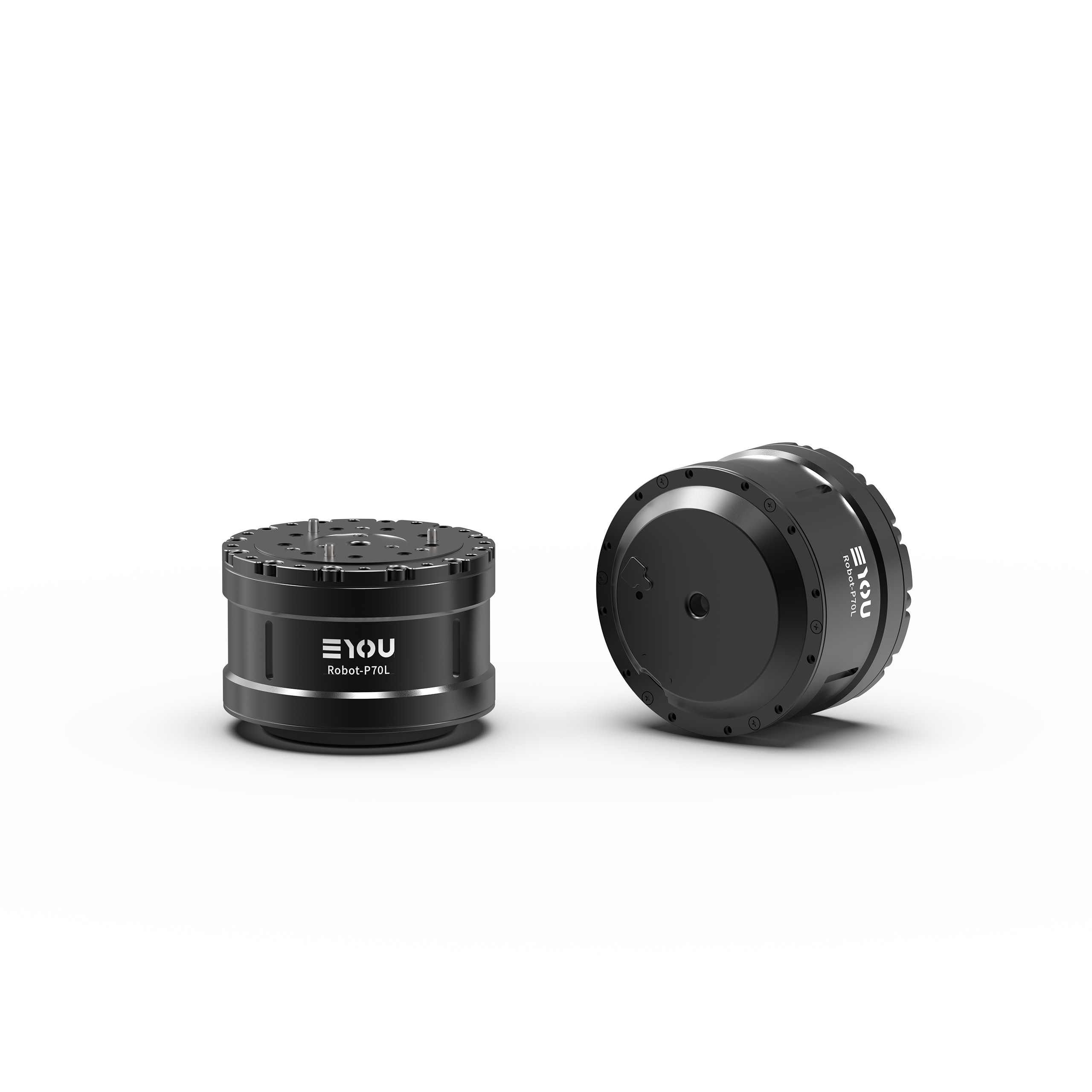

RP Humanoid Planetary Joint Module
Dimensionsφ77*52.5
Hollow Bore Diameter6 mm
Operating Voltage48V
Weight670 g

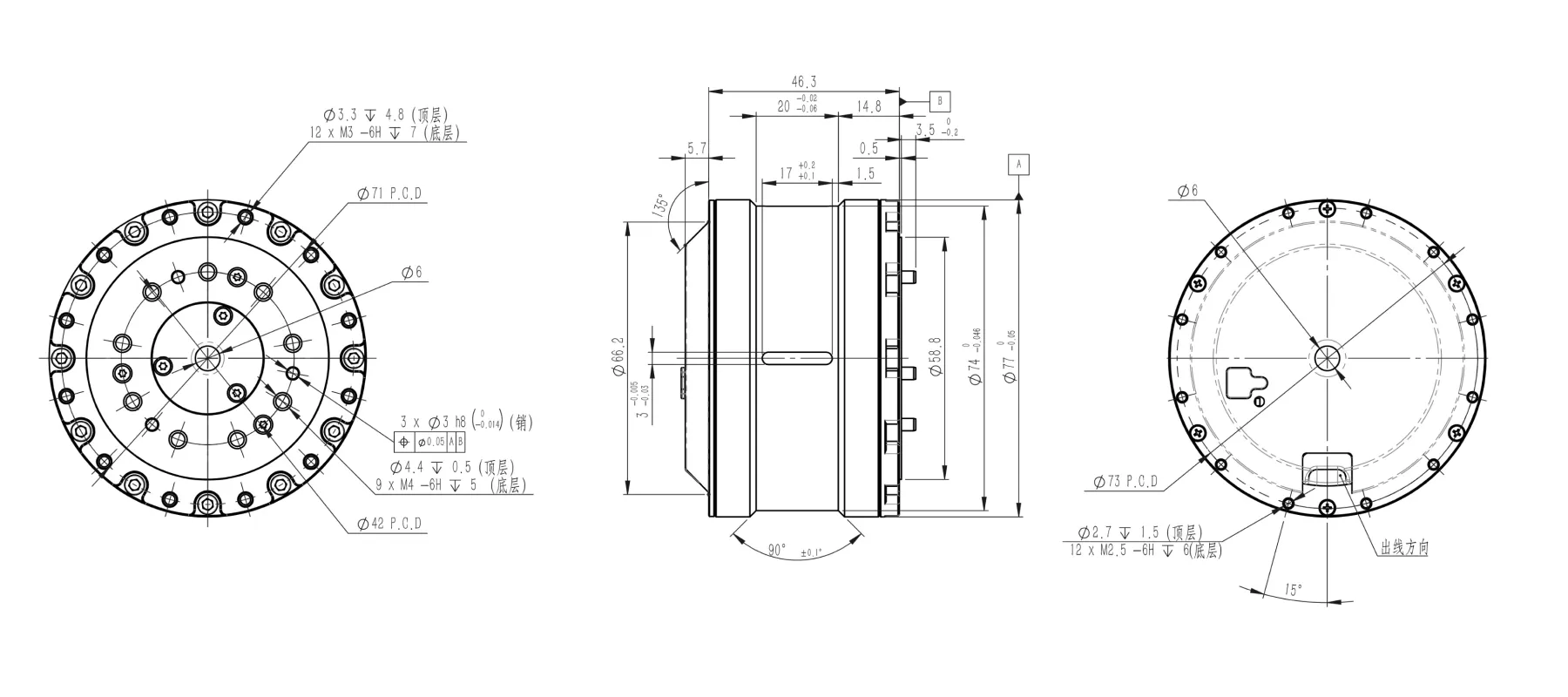

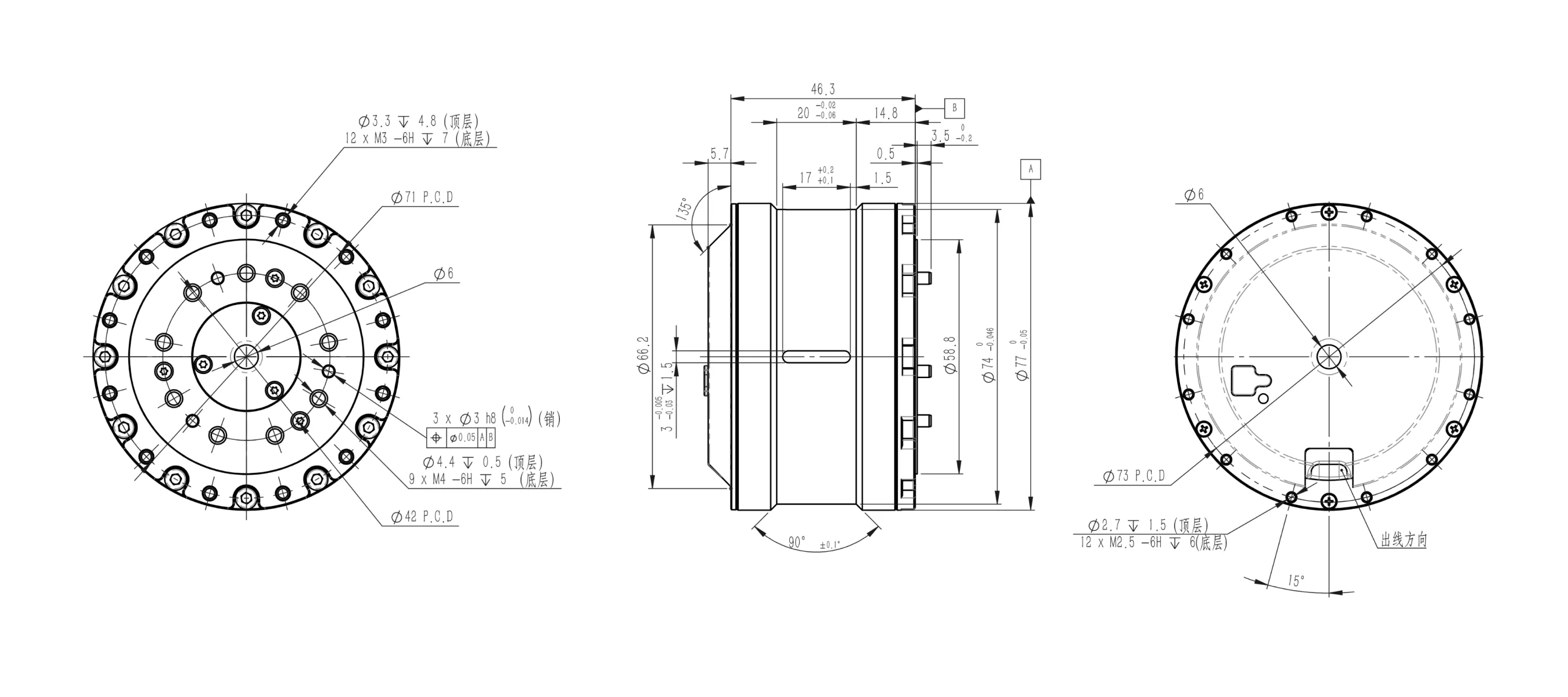

Dimensional Drawing
Specifications
- Model
- RP70L
- Dimensions (mm)
- φ77*52.5
- Hollow Bore Diameter (mm)
- 6
- Weight (g)
- 670
- Reduction Ratio
- 20
- Rated Power (W)
- 163
- Rated Speed (rpm)
- 130
- Rated Torque (N.m)
- 12
- Peak Torque (N.m)
- 36
Features
- Operating Voltage
- 48V
- Backlash
- ≤12arcmin
- Operating Temperature
- -20-45℃
- Operating Noise
- <65dB
- Encoder Type
- Inductive Absolute
- Encoder Accuracy
- 17-bit input, 19-bit output
- Service Life
- >3000h
- Protocol
- CANopen/CAN FD(需定制开发）
