RP70H
RP70H

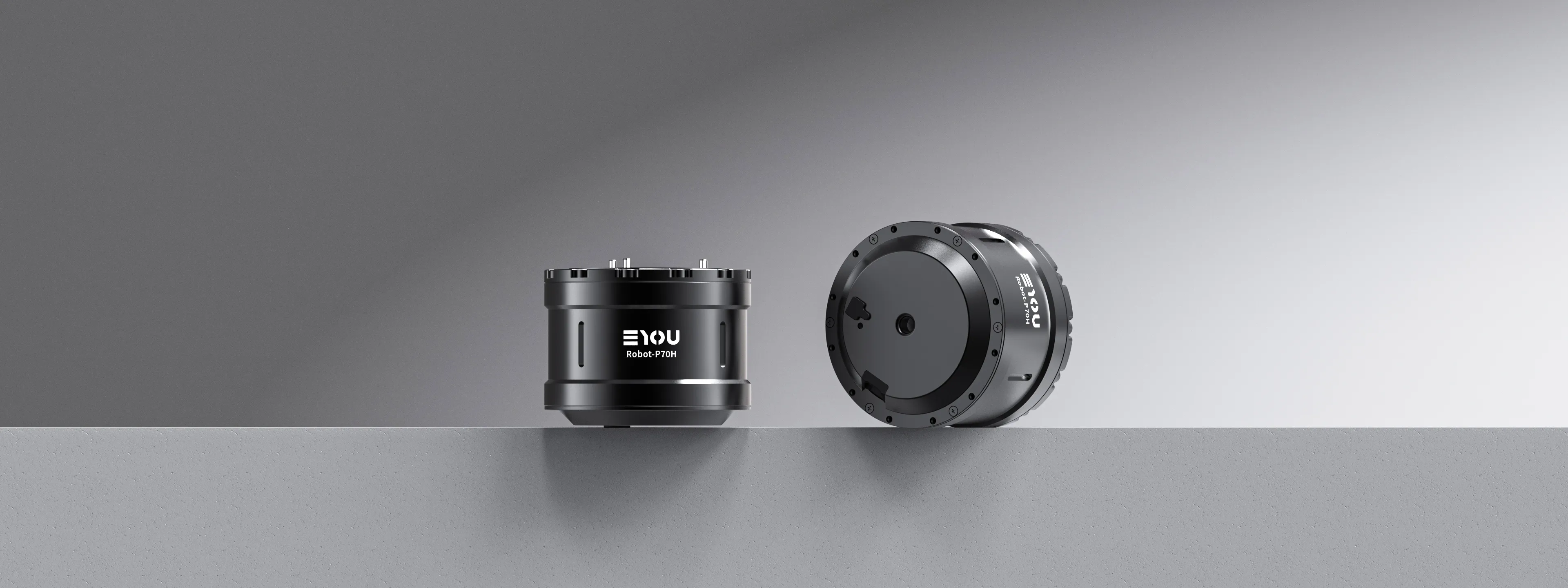

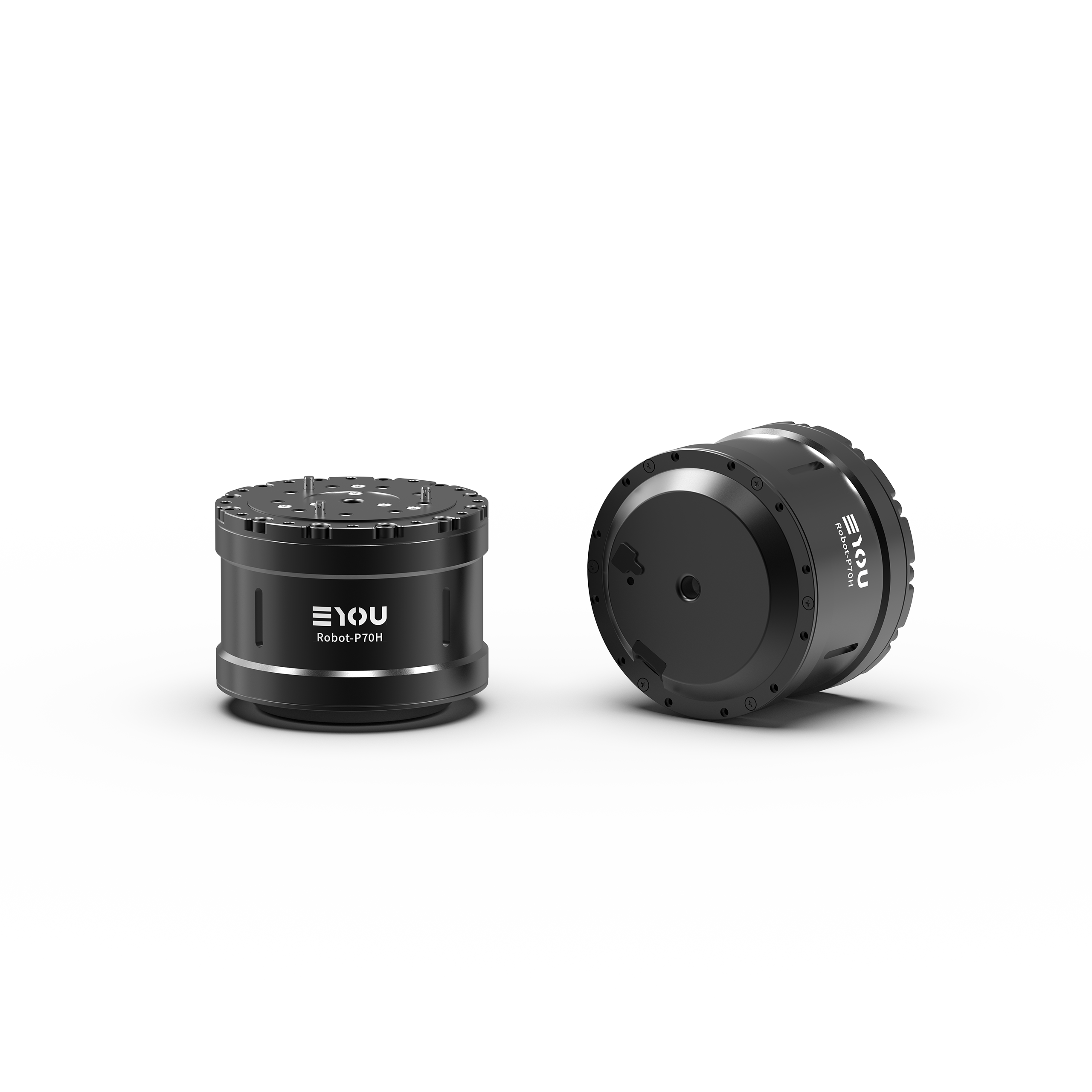

RP Humanoid Planetary Joint Module
Dimensionsφ77*58.3
Hollow Bore Diameter6 mm
Operating Voltage48V
Weight760 g

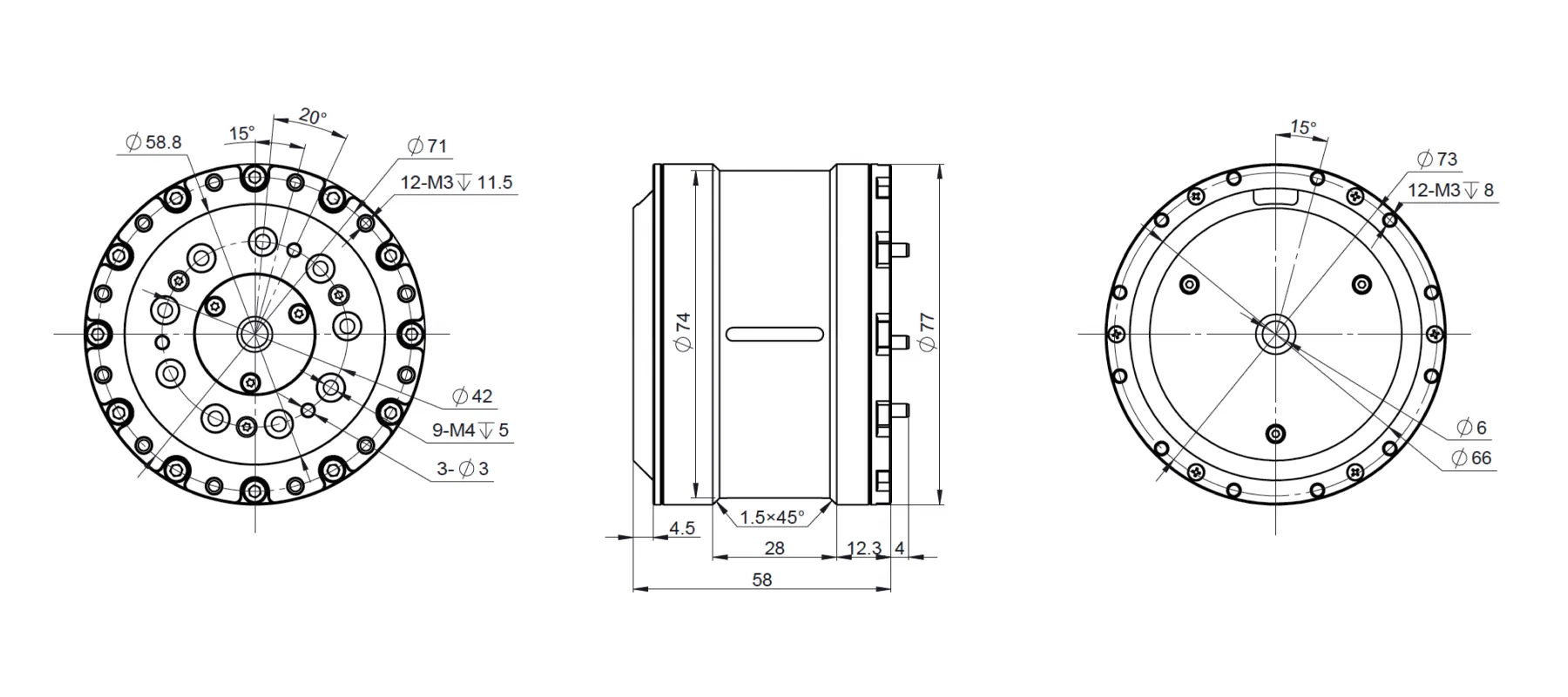

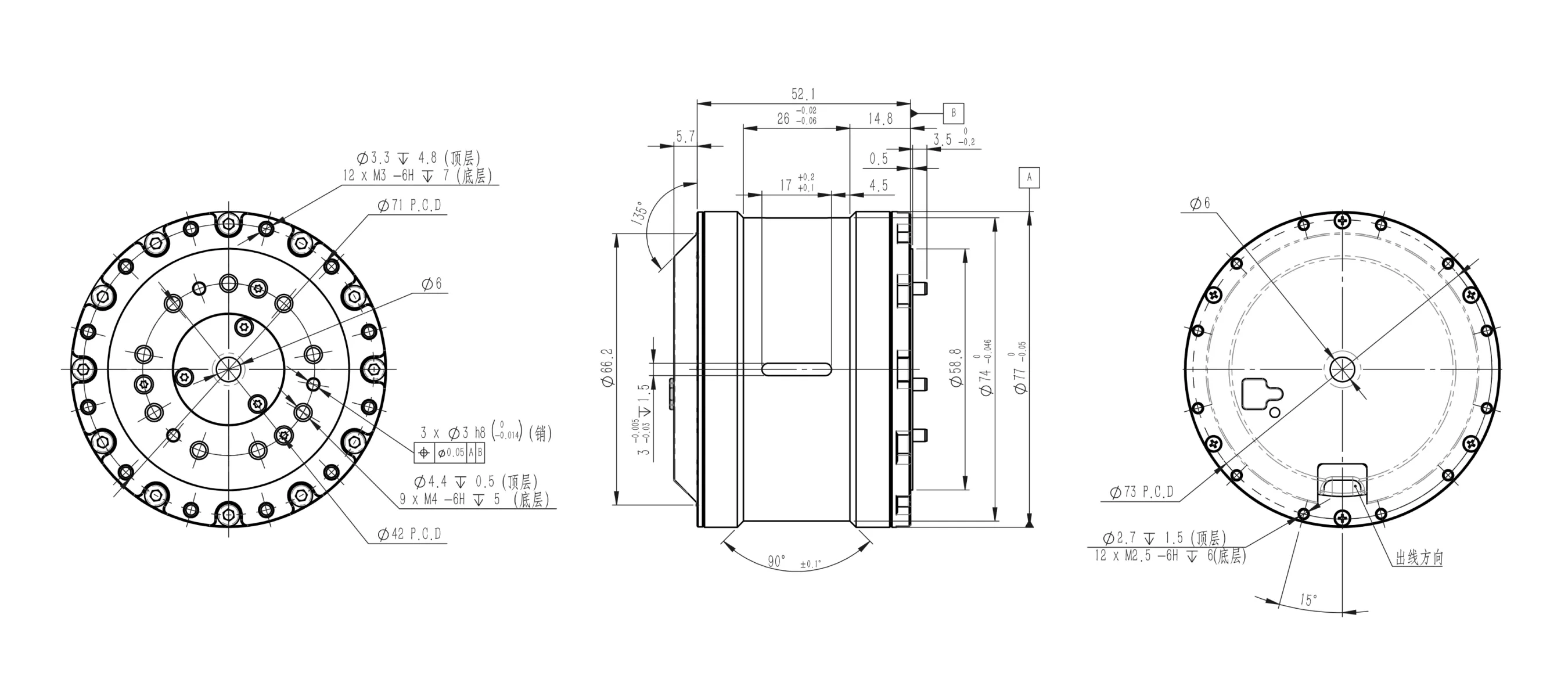

Dimensional Drawing
Specifications
- Model
- RP70H
- Dimensions (mm)
- φ77*58.3
- Hollow Bore Diameter (mm)
- 6
- Weight (g)
- 760
- Reduction Ratio
- 17
- Rated Power (W)
- 223
- Rated Speed (rpm)
- 125
- Rated Torque (N.m)
- 17
- Peak Torque (N.m)
- 60
Features
- Operating Voltage
- 48V
- Backlash
- ≤12arcmin
- Operating Temperature
- -20-45℃
- Operating Noise
- <65dB
- Encoder Type
- Inductive Absolute
- Encoder Accuracy
- 17-bit input, 19-bit output
- Service Life
- >3000h
- Protocol
- CANopen/CAN FD(需定制开发）
