PP08D
PP08D

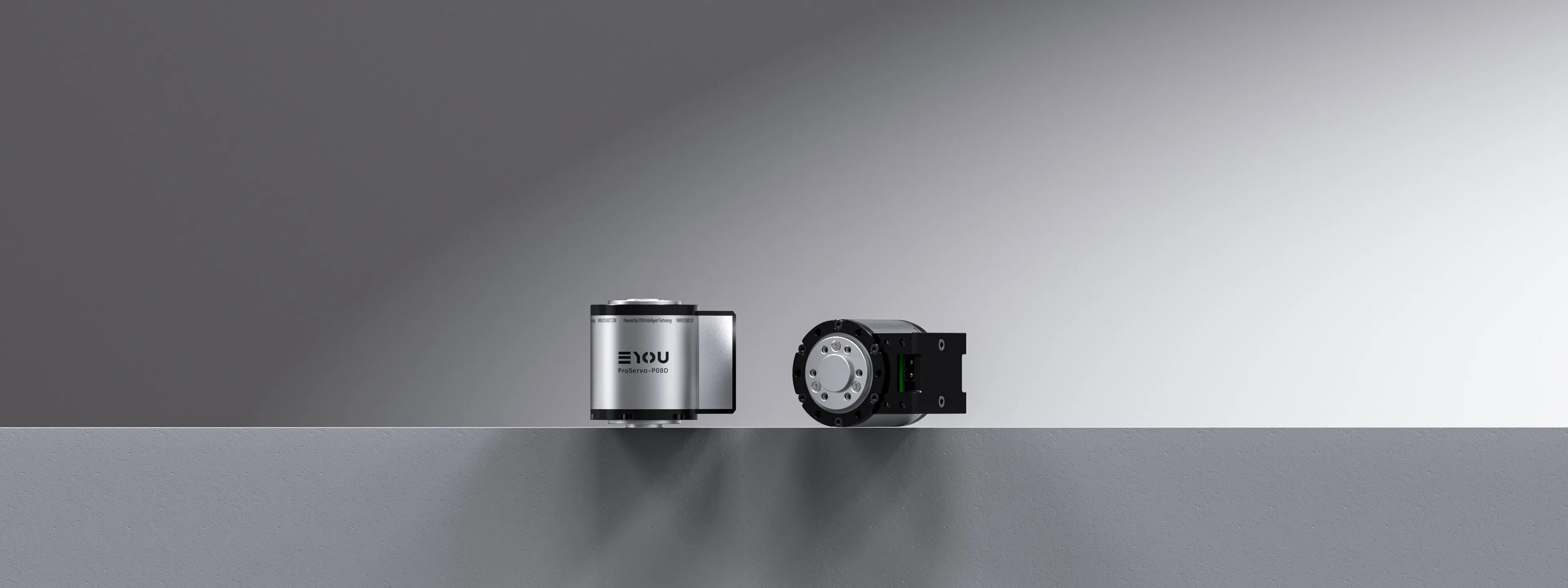

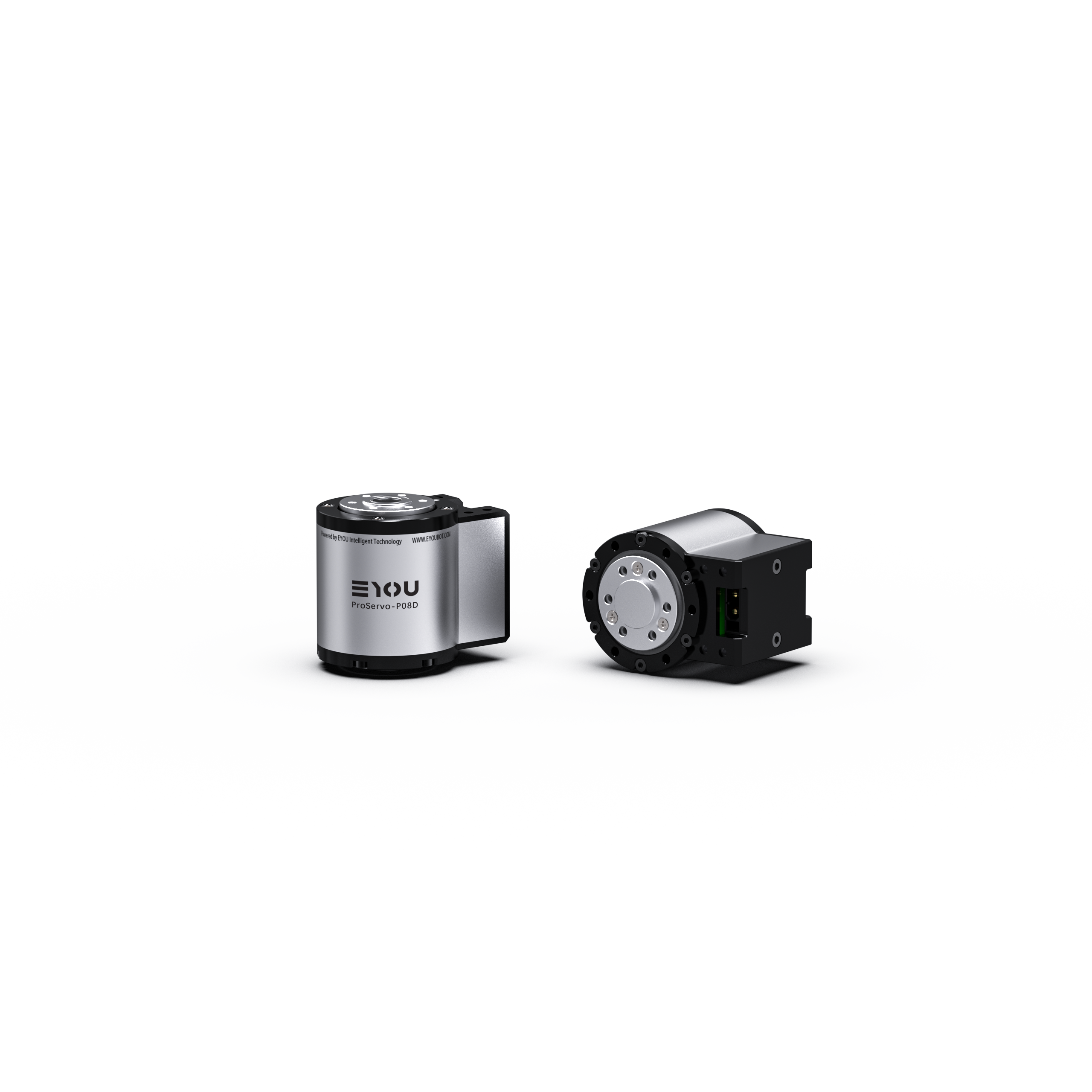

PP Planetary Joint Module
Diameter40 mm
Length47.7 mm
Operating Voltage24~42V
Weight199 g

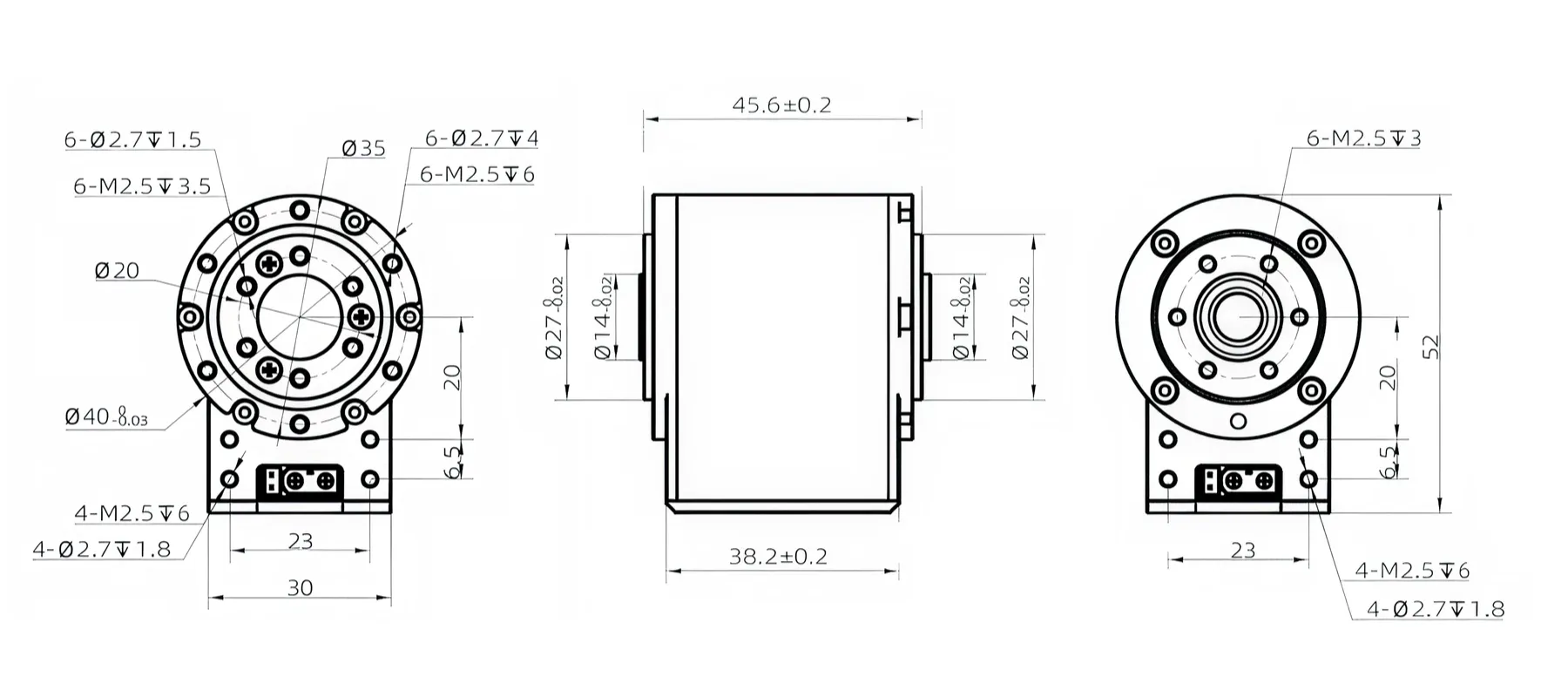

Dimensional Drawing
Specifications
- Model
- PP08D
- Dimensions (mm)
- φ40 x 47.7
- Weight (g)
- 199
- Reduction Ratio
- 36
- Max. Power (W)
- 36
- Rated Speed (rpm)
- 50
- Rated Torque (N.m)
- 1.0
- Peak Torque (N.m)
- 2.2
Features
- Motor Type
- Brushless Torque Motor
- Operating Noise
- ≤70dB
- Operating Voltage
- 24~42V
- Operating Temperature
- -20~60℃
- Protection Rating
- IP54
- Backlash
- ≤15 arcmin
- Encoder Type
- Dual Absolute/16bit
- Protocol
- CANopen
