Engineering Deep Dive: How Harmonic Drive Actuators Work and How to Select One

Inside the Strain Wave Gear: Three Components, One Principle

A harmonic drive — technically called a strain wave gear — achieves high reduction ratios through the controlled elastic deformation of a thin-walled metal component. The mechanism consists of three parts:

Wave generator: An elliptical cam fitted with a thin-raced ball bearing. It sits at the center and is connected to the motor shaft (input).
Flexspline: A thin-walled steel cup with external teeth machined around its open end. This is the component that flexes.
Circular spline: A rigid outer ring with internal teeth. It is fixed to the housing.

The wave generator pushes the flexspline into an elliptical shape, forcing its teeth to mesh with the circular spline at two opposing points. Because the flexspline has two fewer teeth than the circular spline, each full rotation of the wave generator advances the flexspline by just two tooth positions relative to the circular spline. A 200-tooth flexspline against a 202-tooth circular spline produces a 100:1 reduction in a single stage — something that would require three or four stages in a planetary gearbox.

Why Flexspline Fatigue Is the Life-Limiting Factor

The flexspline is the most stressed component. Every input revolution forces it through a full elliptical deformation cycle, creating alternating bending stress across its thin wall. Over millions of cycles, this leads to fatigue — the primary failure mode in harmonic drives.

Research using finite element analysis (FEA) and S-N curve testing has shown that fatigue life is most sensitive to three structural parameters: cylinder wall thickness, cup length, and the fillet radius at the transition between the cup body and the toothed rim. Thinner walls allow more flex but concentrate stress; thicker walls reduce deformation range but may limit the gear ratio achievable in a given envelope.

In practice, actuator manufacturers rate service life based on the wave generator bearing's L10 life at rated torque and speed — not the flexspline itself, because a properly designed steel flexspline under rated load can achieve functionally infinite fatigue life. Overloading the actuator beyond rated torque, however, pushes the flexspline into the finite-life regime and accelerates crack initiation, typically at the tooth root or the rear cross-section of the cup.

Lubrication: The Often-Overlooked Maintenance Factor

Four areas inside a harmonic drive require lubrication:

The wave generator bearing (rolling contact)
The tooth mesh zone between flexspline and circular spline (sliding contact)
The inner bore of the flexspline where it rides on the wave generator outer race
The Oldham coupling, if present in the assembly

Most integrated robot actuators — including the EYOU PHU series — are factory-greased and sealed, so end users do not perform routine re-lubrication. However, operating temperature directly affects grease life. Sustained operation near the upper end of the rated range (60°C for PHU series) degrades lubricant faster, which increases internal friction and eventually accelerates wear at the tooth mesh. For low-temperature environments down to -30°C, specifying low-temperature grease at the time of ordering is necessary to maintain proper viscosity.

Selecting the Right Actuator Size: A Practical Engineering Workflow

Sizing a harmonic drive robot actuator is not just about matching peak torque to a catalog number. The following workflow reflects how experienced engineers approach selection:

Step 1: Define the Joint Load Profile

Determine the torque demand at the joint across its full motion cycle — not just peak torque, but the RMS (root mean square) torque over a representative duty cycle. A joint that briefly spikes to 50 N.m during acceleration but averages 15 N.m has very different thermal and fatigue implications than one running at 40 N.m continuously.

Step 2: Match Rated Torque, Not Peak Torque

Catalog peak torque numbers look impressive but represent momentary allowable limits. The actuator must be sized so that the RMS torque of the application falls at or below the rated (continuous) torque. Running an actuator consistently at peak torque will overheat the motor windings and accelerate flexspline fatigue.

Step 3: Check Speed Compatibility

Harmonic actuators are optimized for low-to-moderate output speeds — typically under 30 rpm at the joint. Higher speeds increase heat generation at the wave generator bearing and tooth mesh. If your application requires fast joint rotation (e.g., above 50 rpm output), verify that the actuator's thermal limits are not exceeded, or consider a lower reduction ratio.

Step 4: Verify Mechanical Interface Fit

Check outer diameter, axial length, hollow bore diameter (for cable routing), and bolt pattern. In humanoid robots, envelope constraints are often the binding factor — the actuator must physically fit inside the limb structure. Hollow shaft diameter matters when routing EtherCAT cables, encoder wires, or pneumatic lines through the joint.

Step 5: Confirm Protocol and Electrical Compatibility

Ensure the actuator's communication protocol matches your motion controller. EtherCAT is standard for real-time synchronized multi-axis control in professional humanoid and cobot platforms. CANopen is common in cost-sensitive or simpler multi-joint chains. Operating voltage (24–48V for PHU series) must align with the system power bus.

Reduction Ratio and Its Practical Trade-Offs

Reduction Ratio	Output Torque	Output Speed	Backdrivability	Typical Application
50:1	Lower	Higher	Easier to backdrive	Wrist, gripper, lightweight arm joints
80:1 – 100:1	Medium	Medium	Moderate	Shoulder, elbow, general-purpose joints
120:1 – 160:1	Higher	Lower	Very difficult to backdrive	Hip, knee, heavy-load joints, fixed-position axes

Higher ratios multiply torque and improve positioning resolution but make the joint harder to backdrive — a consideration for collaborative robots that rely on backdrivability for safe human contact. Lower ratios preserve some backdrivability at the cost of lower torque multiplication.

Heat Management in Integrated Actuators

Because harmonic drive robot actuators pack motor, driver, gearing, and brake into a single sealed housing, heat dissipation is a real engineering constraint. The motor generates heat through copper losses (I²R in the windings) and iron losses (eddy currents in the stator). The harmonic gear generates heat through friction at the tooth mesh and wave generator bearing. The driver board adds its own thermal load from power switching.

All of this heat must exit through the actuator housing into the surrounding structure. In a humanoid robot limb enclosed in a plastic shell, thermal paths are limited. Continuous operation at high torque in a poorly ventilated enclosure can push internal temperatures above safe limits, triggering thermal derating or protection shutdown. Practical countermeasures include duty-cycle planning (avoiding sustained peak loads), using the robot's metal frame as a heat sink, and in extreme cases, adding thermal pads between the actuator housing and the structural chassis.

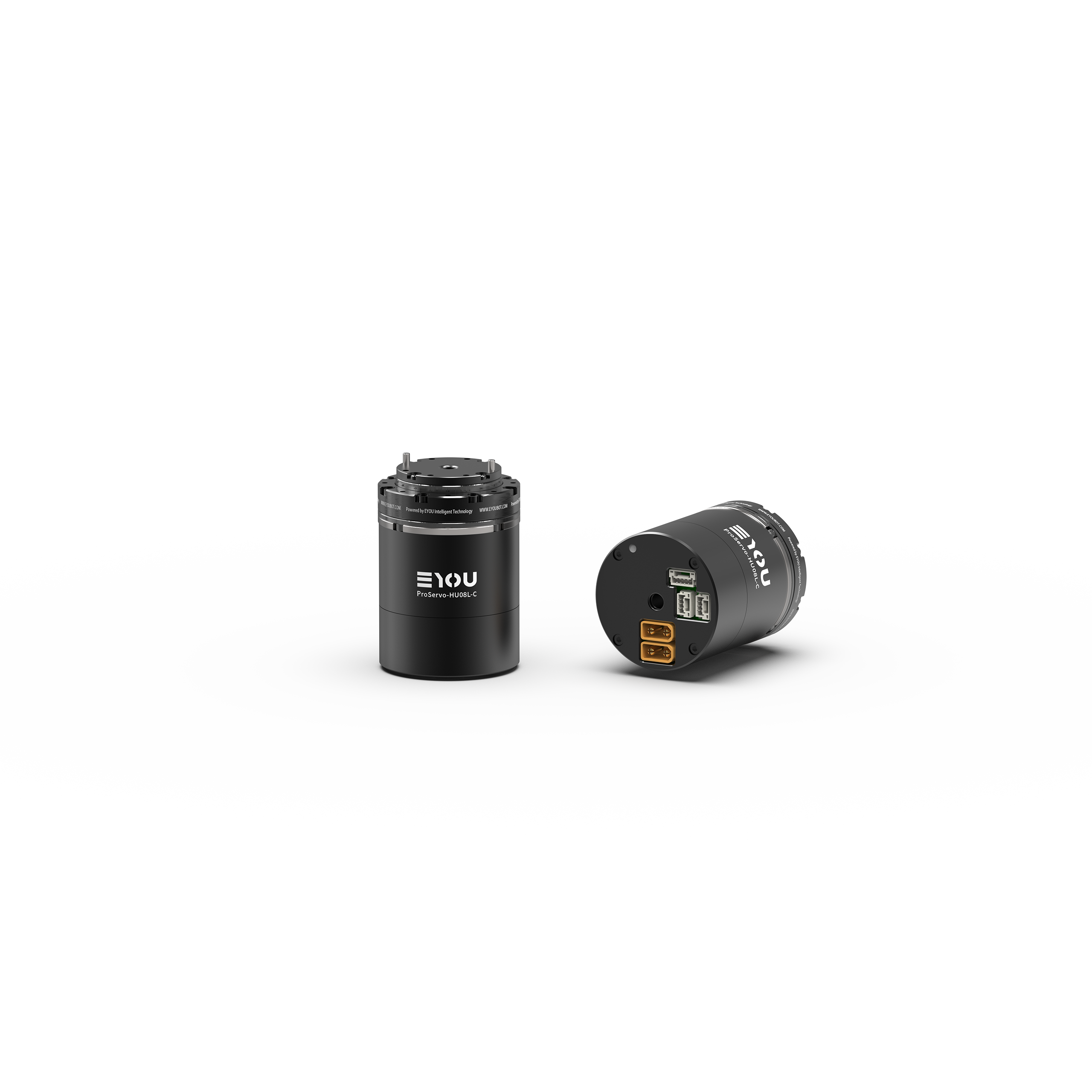

PHU08L-40

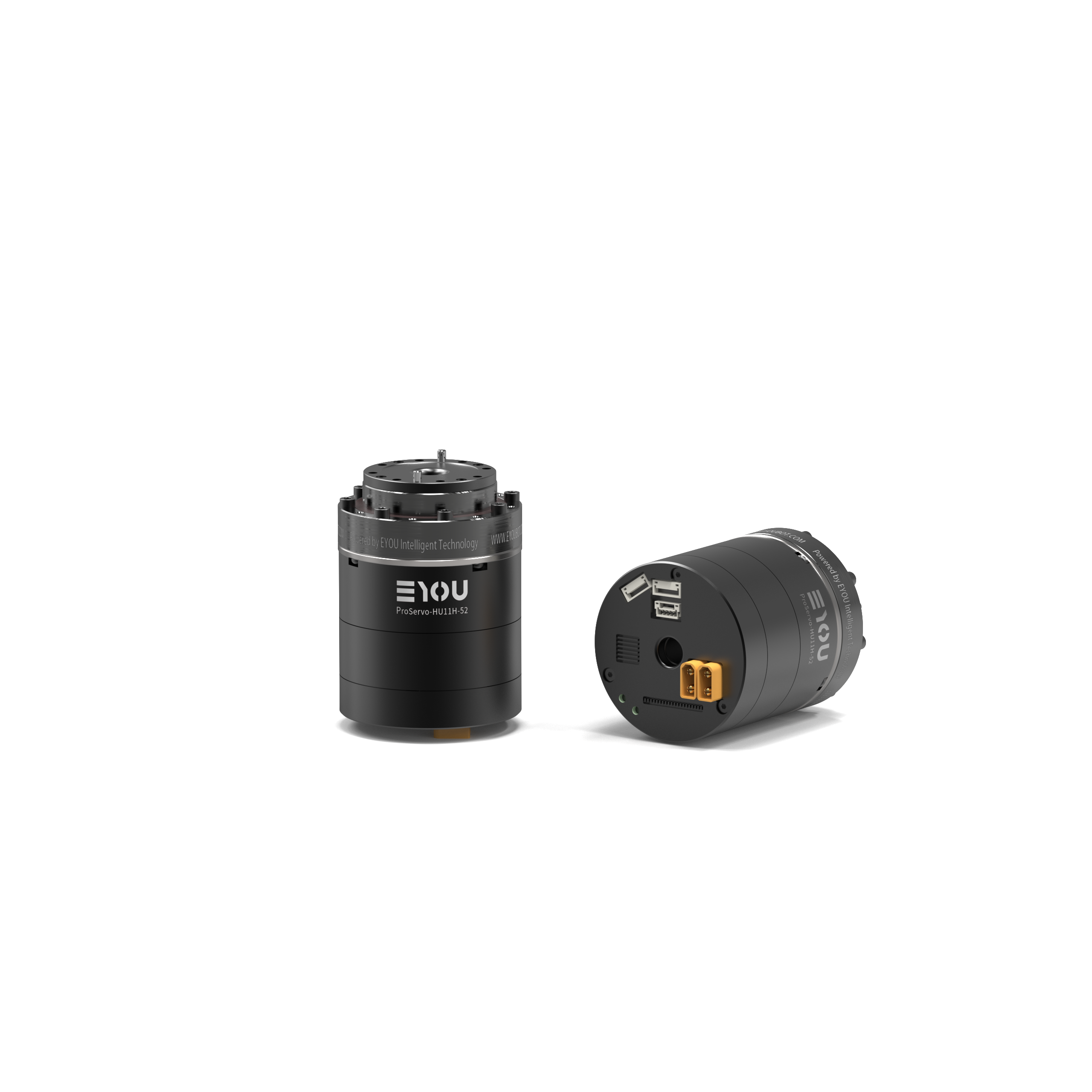

PHU11H-52

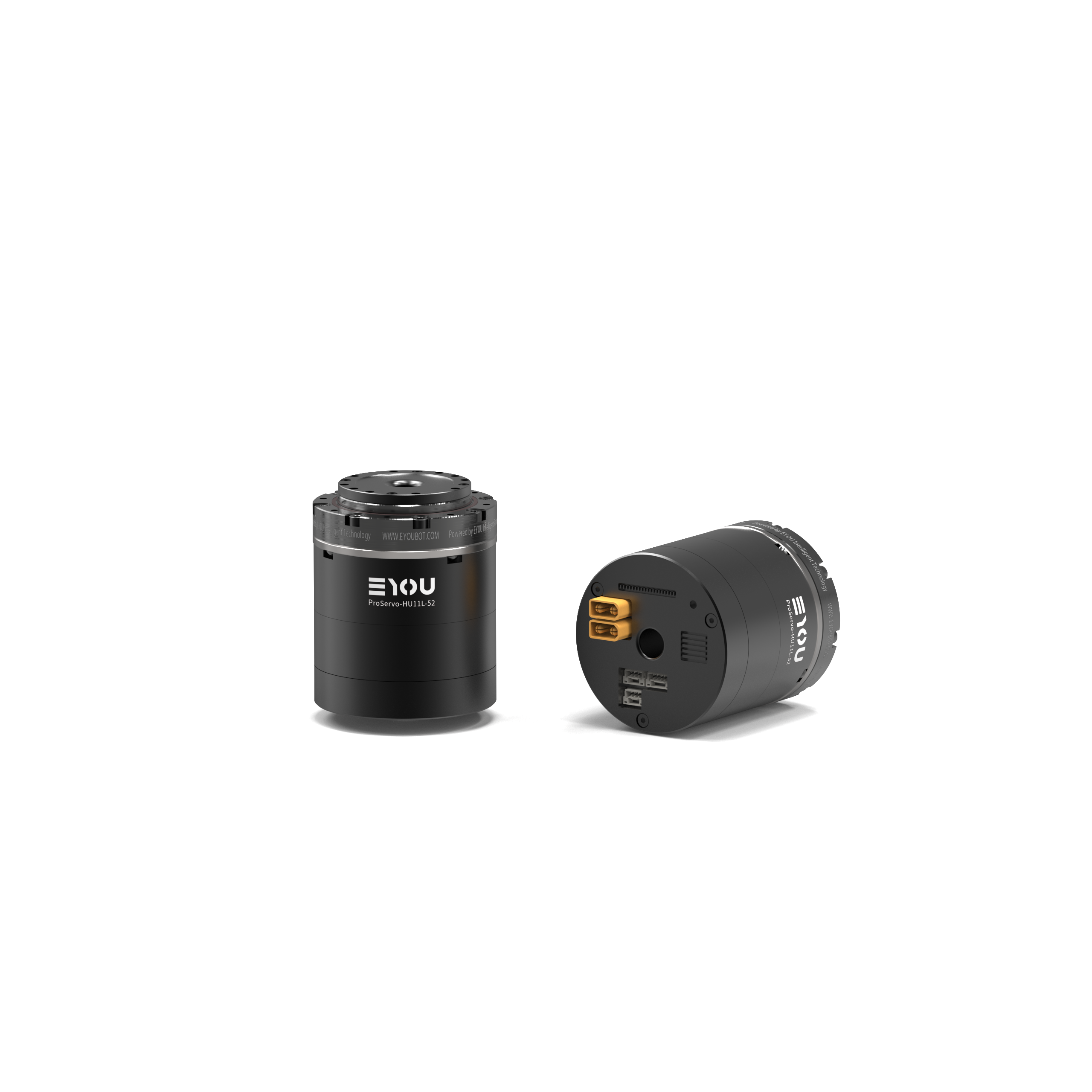

PHU11L-52

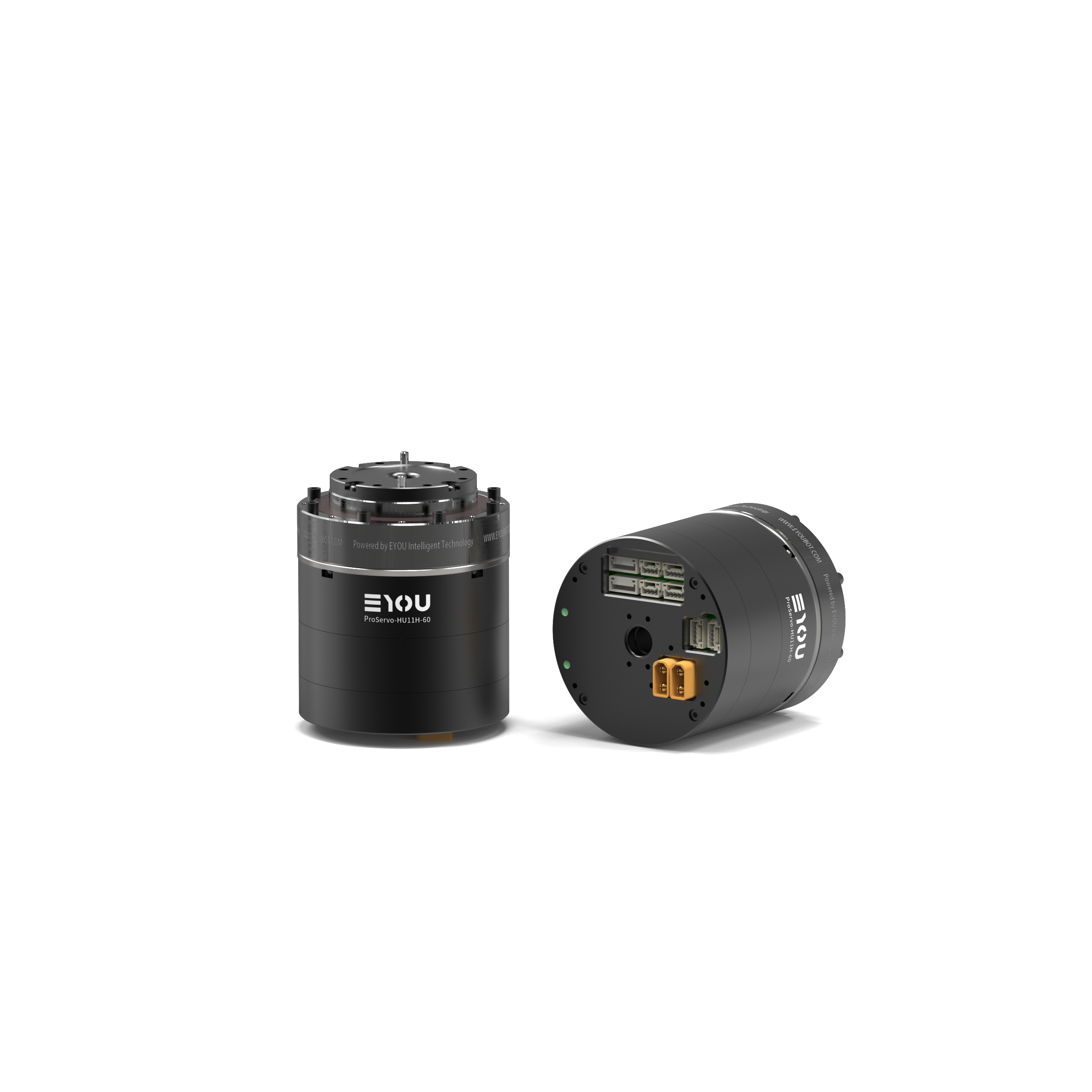

PHU11H-60

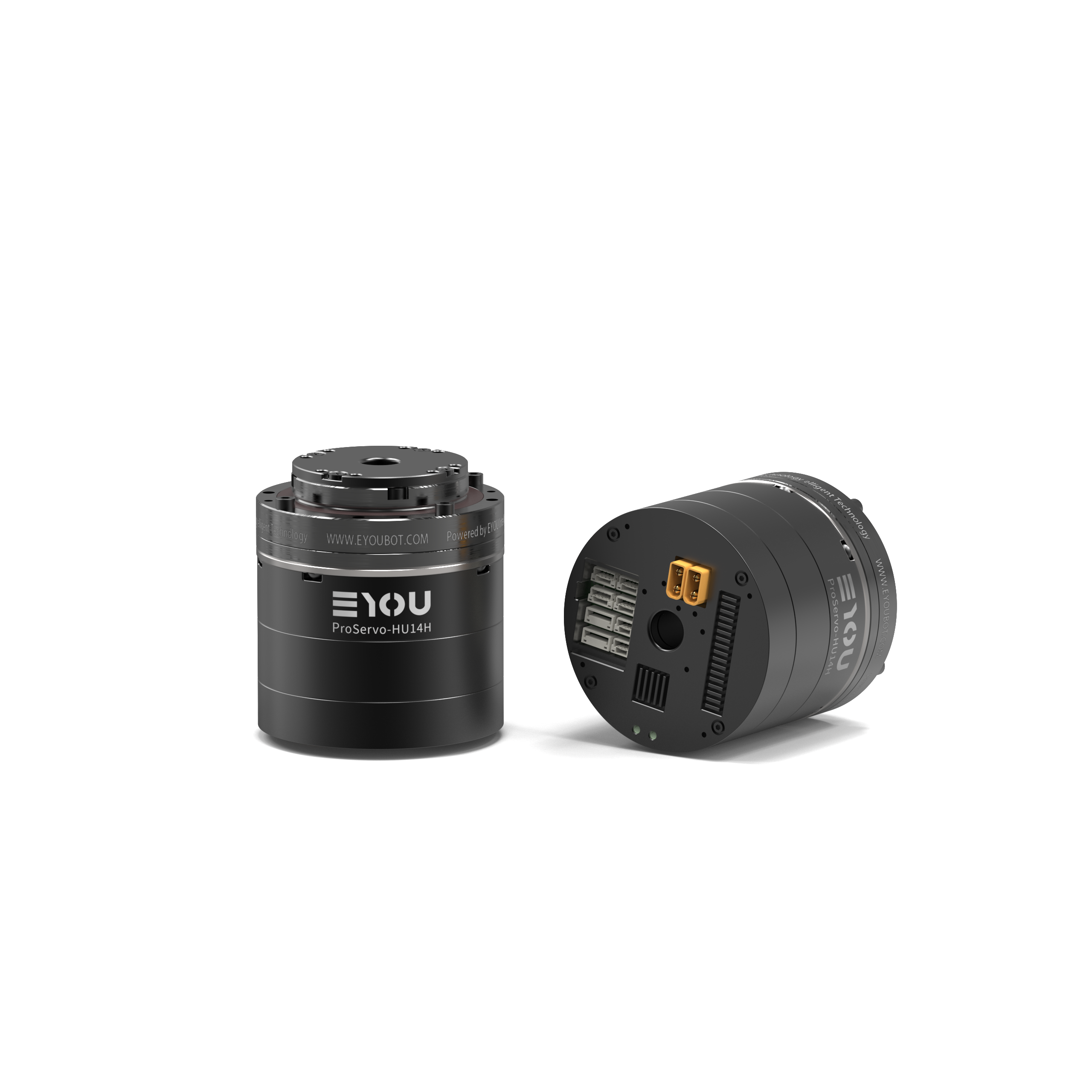

PHU14H-70

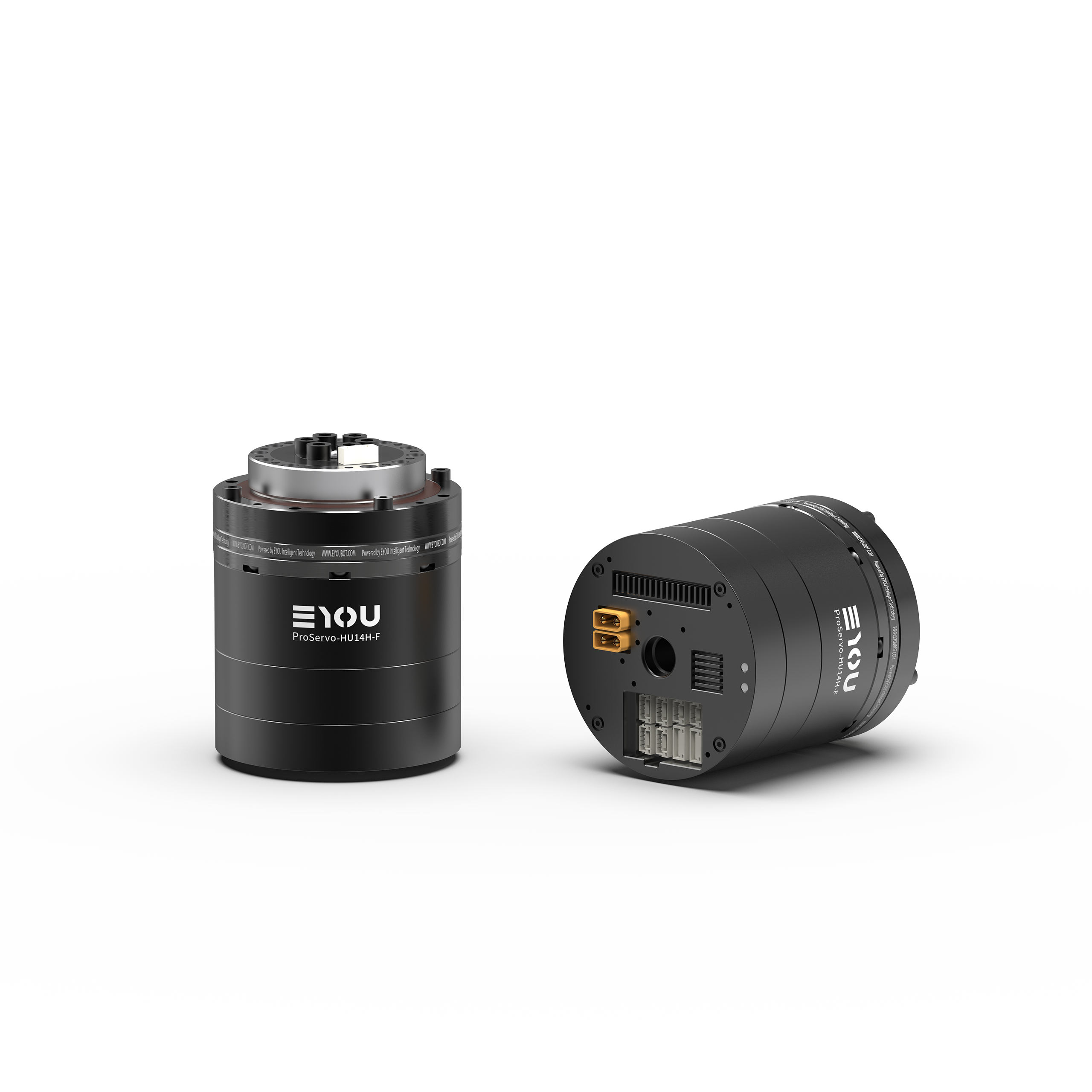

PHU14H-70-F

PHU17H-80

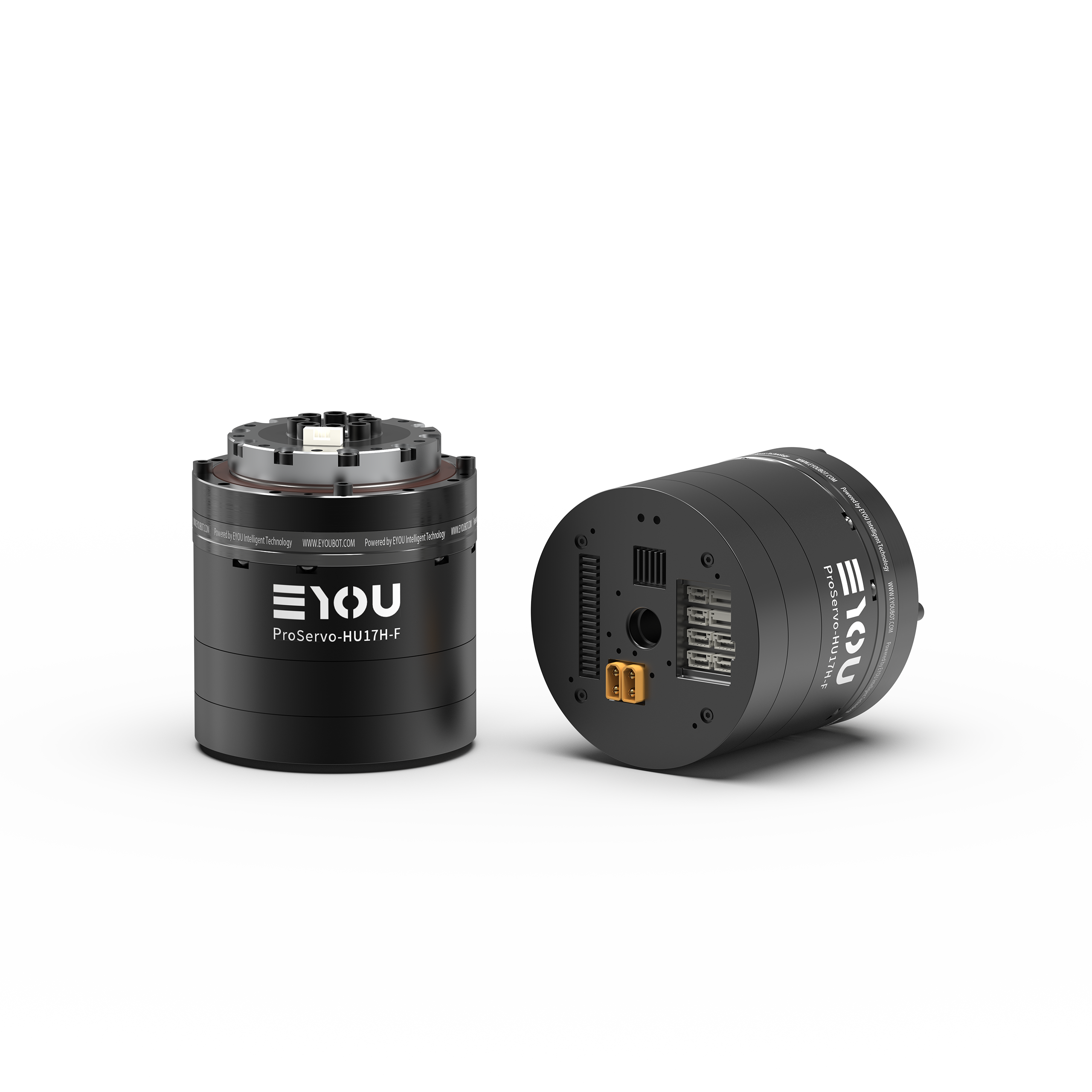

PHU17H-80-F

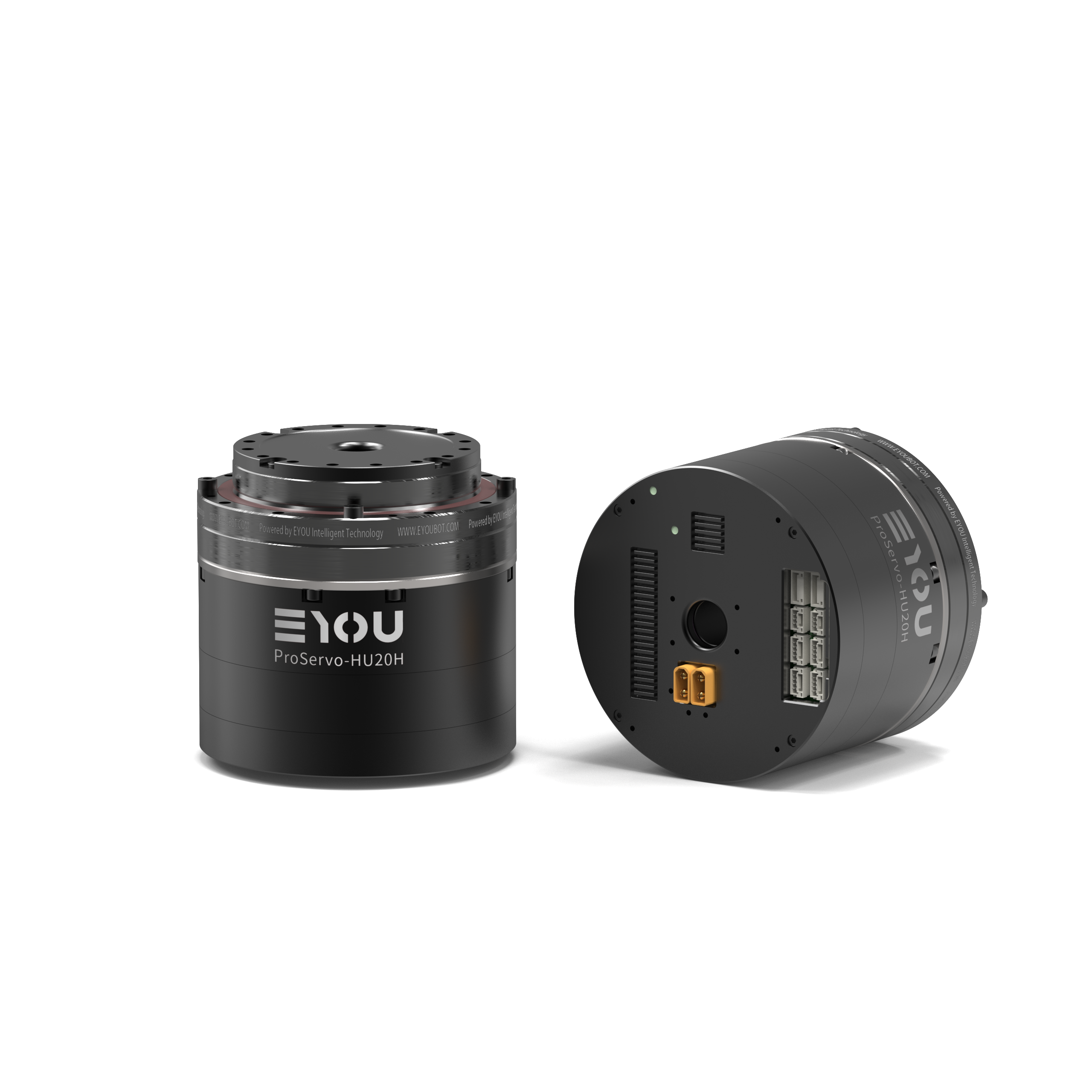

PHU20H-90

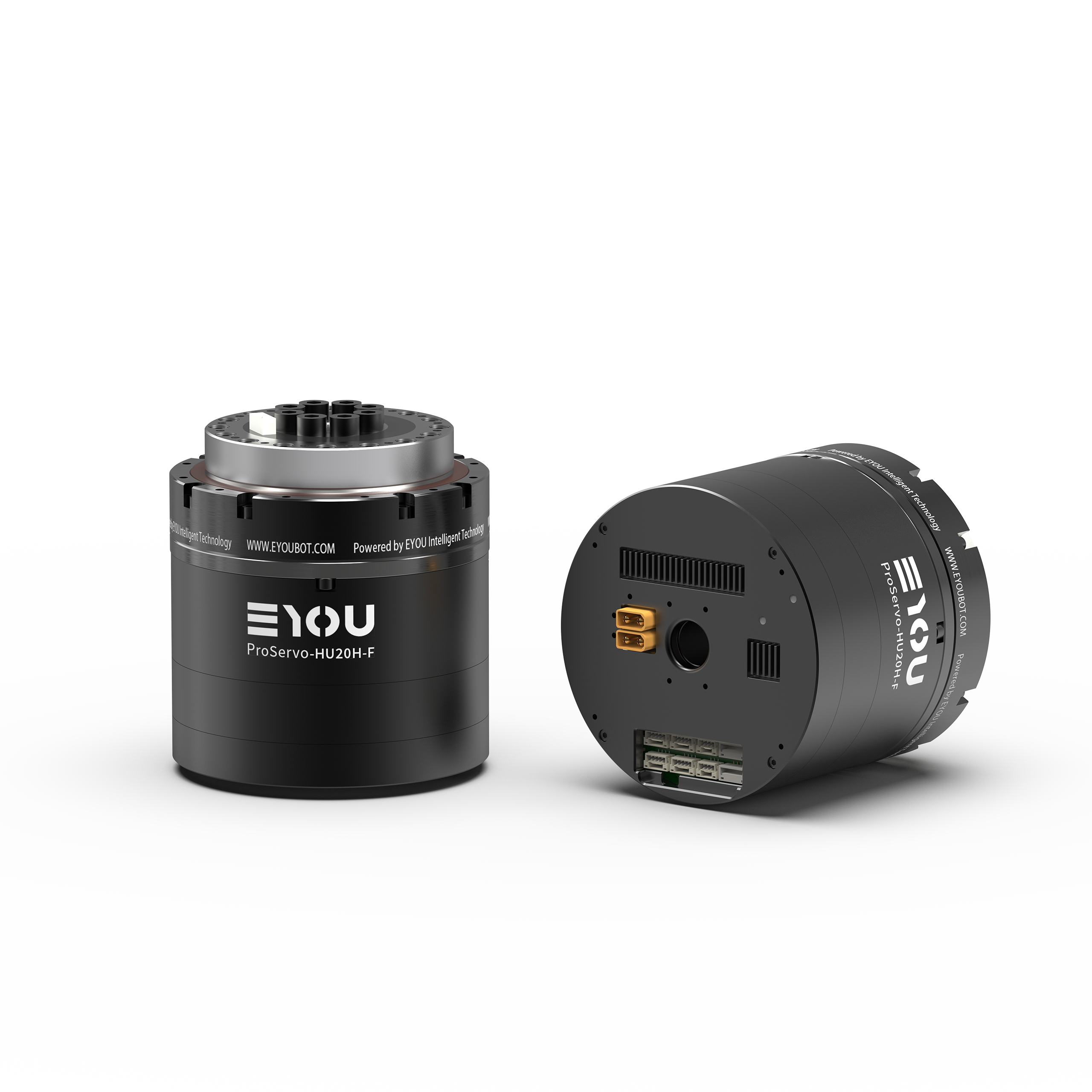

PHU20H-90-F

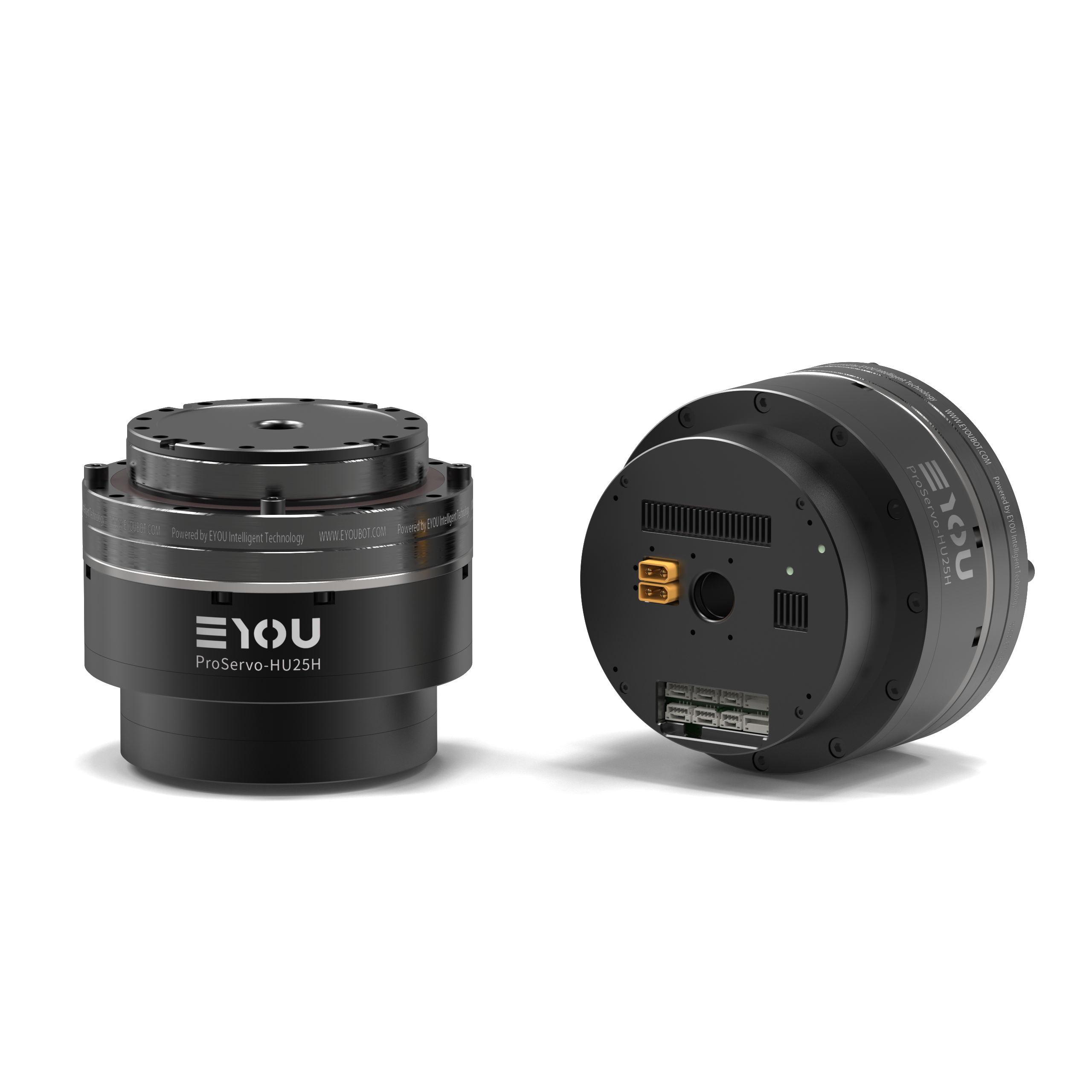

PHU25H-110

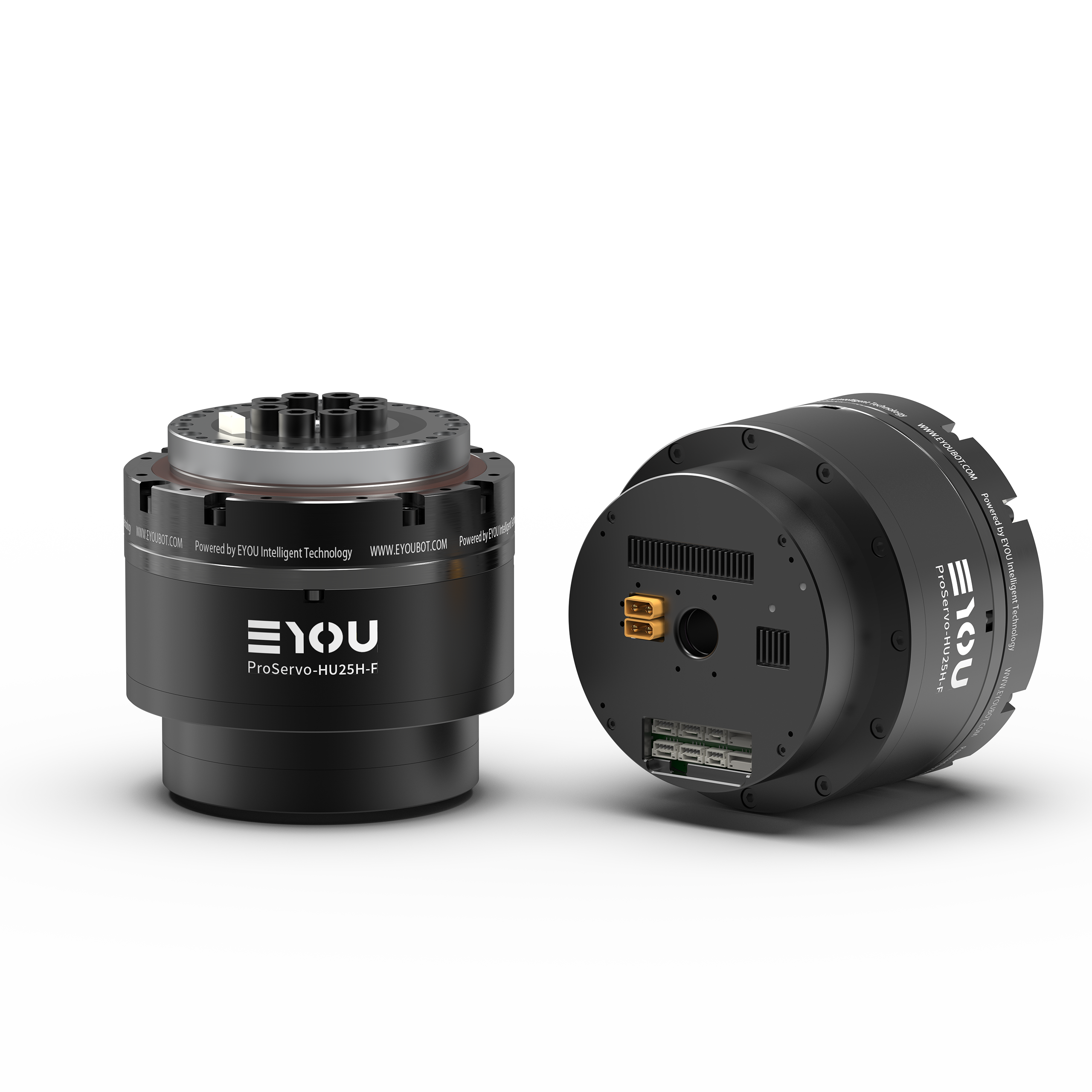

PHU25H-110-F
